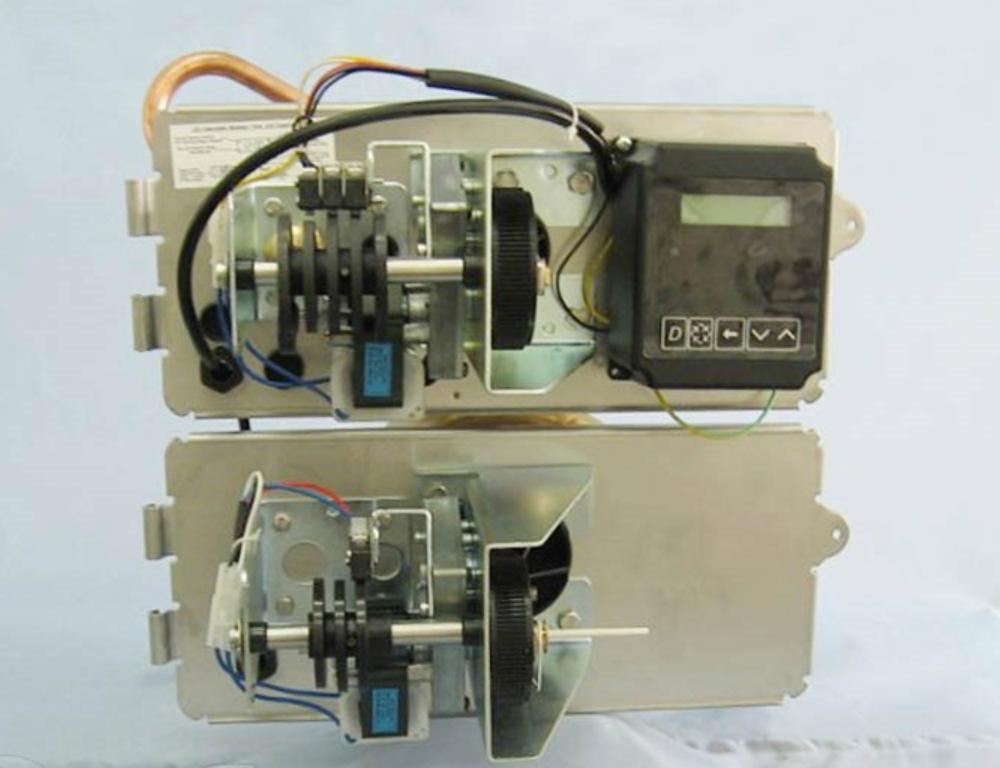

Technical Parameters and Features of FLECKER 3900 Control Valve

The FLECKER 3900 series dual-piston industrial control valve is particularly suitable for large dual-tank systems, configured for one-in-use and one-standby operation or simultaneous operation with alternating regeneration. It can be paired with a softening tank with a diameter of 1600 mm, providing a continuous water output (with a pressure drop of 0.1 MPa) of 56.81 m³/h. The external pipe diameter is generally 3 inches. The FLECKER 3900 control valve is designed for dual-tank systems with horizontally arranged pistons, featuring two pistons—one controlling the regeneration process and the other managing the switching of inlet and outlet water. The valve body is made of lead-free brass. It can be configured for dual-tank or multi-tank systems without requiring additional valves. It is suitable for boiler water softeners and other large industrial water softeners.

Technical Parameters of FLECKER 3900 Control Valve

- Control Methods: Time Control (T), Flow Control (M), Electronic Control (NT).

- Applications: Softening (S), Filtration (F).

- Softener Models: 3900ST, 3900SM, 3900NT, 3900FT.

- Multi-Valve Systems:

  - SM System: 3900#6 (dual valves working simultaneously), 3900#7 (dual valves, one in use and one standby).

  - NT System: 3900#6, 3900#7.

- Inlet/Outlet Pipe Diameter: DN80.

- Theoretical Water Output per Valve: 56.81 m³/h.

Technical Features of FLECKER 3900 Control Valve

- Valve Body Material: Lead-free brass.

- Inlet/Outlet Pipe Diameter: 3 inches.

- Flow Direction: Co-current or counter-current (optional).

- Program Adjustment: All regeneration step times are adjustable.

- Regeneration Time: 164 minutes.

- Flow Meter Range: 3 inches.

- Hard Water Bypass: Not available.

- Central Pipe Diameter: 3 inches.

- Drain Pipe Diameter: 2 inches (female).

- Brine Line Diameter: 3/4 inch (male).

- Tank Connection Diameter: 6 inches - 8UN or flange connection.

- Valve Height (from valve top to tank connection): 15 inches.

This summary provides a detailed overview of the FLECKER 3900 control valve's technical parameters and features, making it easier to understand its capabilities and suitability for large-scale industrial water softening applications.
