Commodity name:
CM 600 Digital Sensor
■ Operating Specifications
|
Model
|
CM-600
|
|
Sensor Communication Type
|
RS485 interface, MODBUS RTU communication Protocol
Option for one point off set correction for all parameters-ORP, pH, conductivity
|
|
Sensor Function
|
Electrode performance self-diagnosis
|
|
|
Standard-exceeding of water quality warning
|
|
|
Electrode offline warning
|
|
|
Serial number tracing
|
|
|
Electrode hibernation low-power mode
|
|
|
Support electrode communication address 255 broadcast
|
|
Factory Calibration
|
Sensor should be supplied with factory 2-point calibration certificate for all parameters.
Option for one point offset correction at any point.
|
|
Operating Temperature Range
|
Water: 6-50°C
Ambient: 0-75°C
|
|
ORP Range
|
-2000 mV to +2000 mV ORP
|
|
PH Range
|
1-14 pH
|
|
Conductivity range
|
0-20000 uS/cm
|
|
Resolution
|
PH
|
0.01 pH
|
|
ORP
|
±2 mV
|
|
Conductivity
|
0.01uS
|
|
Temp
|
0.1℃
|
|
Accuracy
|
PH
|
0.1 pH
|
|
ORP
|
10mV
|
|
Conductivity
|
1.5%FS
|
|
Temp
|
0.5℃
|
|
Electrode Material
|
ORP: Platinum; Conductivity: Platinum with plating black; PH: Specialty glass
|
|
Sensor Pressure Limit
|
3.5 bar
|
|
Sensor Cable
|
Integral 4 conductor cable with double shield and polyurethane jacket; Rated temperature 105 °C (221°F);
UV enhanced for outdoor installation
|
|
Electrode Structure
|
Waterproof aviation plug is used for electrode and cable, easy for uninstallation
|
|
Cable Length
|
5 M
|
|
Warranty
|
12 months
|
|

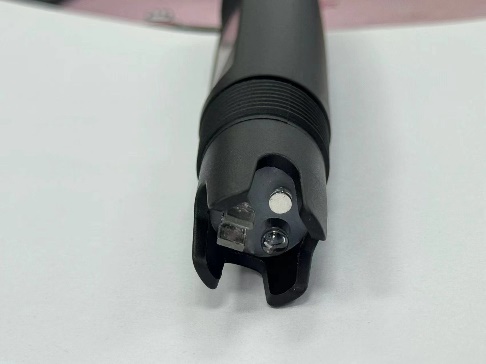

Pic
|
|
